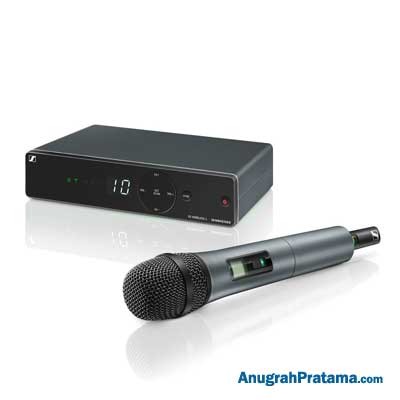

SENNHEISER XSW 1-825 Wireless Handheld Microphone System

Deskripsi

Anugrahpratama.com Jual SENNHEISER XSW 1-825 Wireless Handheld Microphone System

Spesifikasi:

• THD, total harmonic distortion : </= 0.9%
• Pick-up Pattern : Cardioid
• Signal-to-noise Ratio : >/= 103 dBA
• RF Output Power : 10 mW
• Switching Bandwidth : up to 24 MHz
• Operating Time : Approx. 10 hrs
• Modulation : Wideband FM
• Output Voltage : 1/4 inch (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Dynamic Range : Dynamic
• Frequency : 8 frequency banks, each with up to 10 factory-preset channels
• Frequency Range : A: 548-572 MHz, GB: 606-630 MHz ; B: 614-638 MHz ; C: 766-790 MHz ; D: 794-806 MHz ; E: 821-832 MHz, 863-865 MHz ; K: 925-937.5 MHz
• Sensitivity : < 3 microV at 52 dB(A)rms S/N
• Squelch : Adjustable from 3 dBmicroV to 28 dBmicroV (combined with pilot tone)
• Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input Sensitivity : 1.5 mV / Pa
• Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps
• Audio Adjustment Range : 45 dB, adjustable in 5-dB steps
• Line / Mic level : 20 dB, switchable
• Receiver Principle : Double Superheterodyne
• Diversity Principle : Antenna switching diversity via internal antennas
• Power Supply : Receiver: 12 V DC nom. / 300 mA, Microphone: 2 AA size batteries, 1.5 V
• AF Frequency Response : Receiver: 50 to 16,000 Hz (-3 dB), Microphone: SKM 825: 80-14,000 Hz
